Scenargie® Visual Lab
Scenargie® Visual Lab is the GUI frontend for Scenargie Framework and essentially discriminates Scenargie products from other simulator tools. It provides various functionalities such as scenario configuration of system model and/or mobility model, simulator execution control, simulation log playback, simulation statistics display, radio wave propagation analysis, etc.
This visual front-end shows GIS data and information of communication systems. Besides, it can also analyze radio wave propagation for horizontal planes or between communication nodes using various radio wave propagation models.

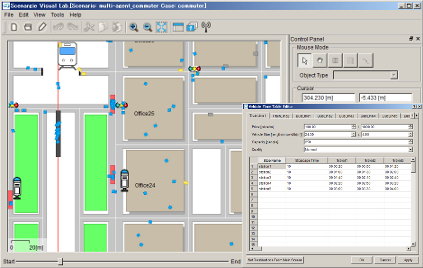

Multi-Agent simulation image.

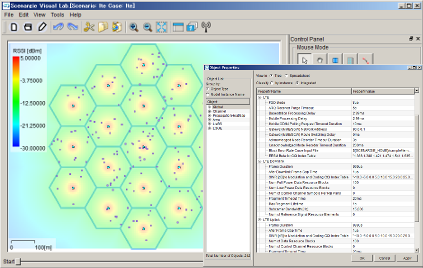

LTE simulation scenario creation image.
Scenargie® Base Simulator
Scenargie® Base Simulator is a discrete event simulator implemented in C++. It provides the base simulation engine for the family of Scenargie products, and also provides the basic system models covering the system stack (layer 1 through 7 of the OSI Reference Model). In combination with Dot Eleven Module or LTE Module, it enables system-level simulation using detailed communication protocol such as wireless LAN and LTE (3GPP Long Time Evolution). Moreover, realistic mobility simulation using various means of transportation systems (foot, bicycle, bus, train, etc.) is possible in combination with Multi-Agent Extension Module.
The source code of system models is available to clients to enable them to customize models according to their needs.
We understand that many of our customers who write system models for their simulation studies are programming experts and have programming / debugging tools of their choice. So, why not letting them use their programming environment together with our simulation framework? Scenargie Base Simulator gives users access to almost all source codes of system models, allowing them to inspect the validity of simulation models, customize the models for their needs, and debug their codes / models under their programming environment.
